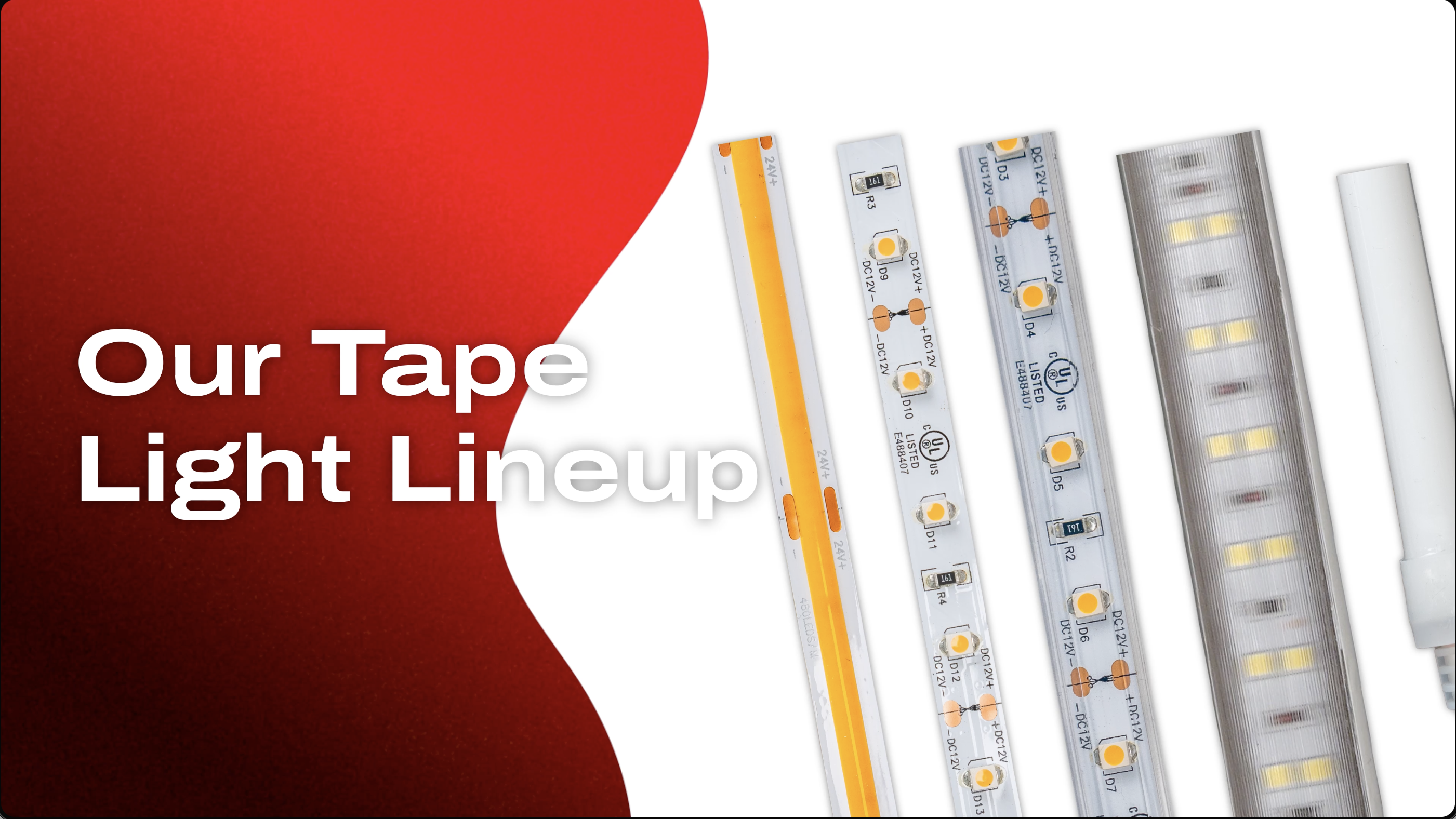

arani-led-tapes-informational

COB LED TAPE LIGHT | 24V | 3000K | 3W/FT | INDOOR | DIMMABLE | BY INCH

SKU: TLC-3W-24V-30K-I-IN

Underwriter Laboratories conforms to the safety standards in the US and in Canada Certifies there is no usage of specific hazardous materials (Cadmium, Lead, Mercury, etc)

This 24V indoor COB LED tape light is sold by the inch, making it ideal for custom-length architectural and millwork projects. Built on Chip-on-Board technology, it delivers a continuous, dot-free beam. Rated cULus, IP20. Compatible with Arani aluminum extrusion profiles.

Key Specs:
300 lm/ft | 100 lm/W efficacy
3W/ft | 48W total (16 ft roll)
3000K | CRI 90+
24Vdc input | Dimmable
IP20 | Dry locations only
Min. cut every 2 in. | Max. run 32 ft
Strip width: 5/16 in. (8 mm)
Rated life: 25,000 hrs | 3-year warranty

Power supply sold separately. Sold by the inch.

Related Products
Slim Square Frosted Kit with extrusion, lens, and end caps
PR-SS-V1

Slim Square Aluminium Profile Kit | With Accessories | 8ft | Frosted

Slim Square Opaline Kit with extrusion, lens, and end caps
PR-SS-O-V1

Slim Square Aluminium Profile Kit | With Accessories | 8ft | Opaline

Aluminium Channel | Square | Without Accessories | 8ft Kit | Frosted Image
PR-S-V1

Square Aluminium Channel Kit | Frosted

Aluminium Channel | Square | Without Accessories | 8ft Kit | Opal Image
PR-S-O-V1

Square Aluminium Channel Kit | Opaline

Black closed end cap installed in square aluminum extrusion
PR-S-BK-V1

Black Square Aluminium Profile Kit | With Accessories | 8ft

Channel (LUNAR Profile Aluminum Channels) Image
LU-S-15

LunoLite Recessed Aluminium Profile Kit

Aluminium Channel | Recessed | Without Accessories | 8ft Kit | Opal Image
PR-RC-O-V1

Recessed Aluminium Channel Kit | Opaline

COB LED Strip Reel - 2700K Warm Light with Adhesive Backing for Indoor Custom Lighting Applications
TLC-3W-24V-27K-I

COB LED Tape Light | 24V | 2700K | 3W/ft | 16 ft Roll | Indoor | Dimmable

LED COB Strip (4000K) | 48W | 24V | Indoor | By Inch | image
TLC-3W-24V-40K-I

COB LED Tape Light | 24V | 4000K | 3W/ft | 16 ft Roll | Indoor | Dimmable

COB Tape Light Close Up
TLC-3W-24V-27K-I-IN

COB LED Tape Light | 24V | 2700K | 3W/ft | Indoor | Dimmable | By Inch

COB Tape Light Close Up
TLC-3W-24V-40K-I-IN

COB LED Tape Light | 24V | 4000K | 3W/ft | Indoor | Dimmable | By Inch

Specs sheet

Download the specifications sheet.

Ordering Info

Series: COB Series COB Series

Application: Residential Residential

Product Lifetime: 25000 Hours 25000 Hours

Warranty: 3 Year(s) 3 Year(s)

Certifications: cULus cULus

Ordering Code: TLC-3W-24V-30K-I-IN TLC-3W-24V-30K-I-IN

Performance Data

Suitable Conditions: Dry Dry

Maximum Operating Temperature: 131 °F 55 ℃

Minimum Operating Temperature: -40 °F -40 ℃

Compatible with: Arani Extrusions Arani Extrusions

Lumens/FT: 300 lm 300 lm

Power/FT: 3 W 3 W

CRI (Colour Rendering Index): 90+ 90+

IP Rating: IP20 IP20

Efficacy: 100 lumens/Watt 100 lumens/Watt

Indoor/Outdoor: Indoor Indoor

Colour Temperature: 3000K 3000K

Input Voltage: 24Vdc 24Vdc

Physical Data

Width: 5/16 in 0.8 cm

Height: 1/8 in 0.2 cm

Minimum cut distance: 2 in 5 cm

Maximum length per run: 32 ft 9.7 m
